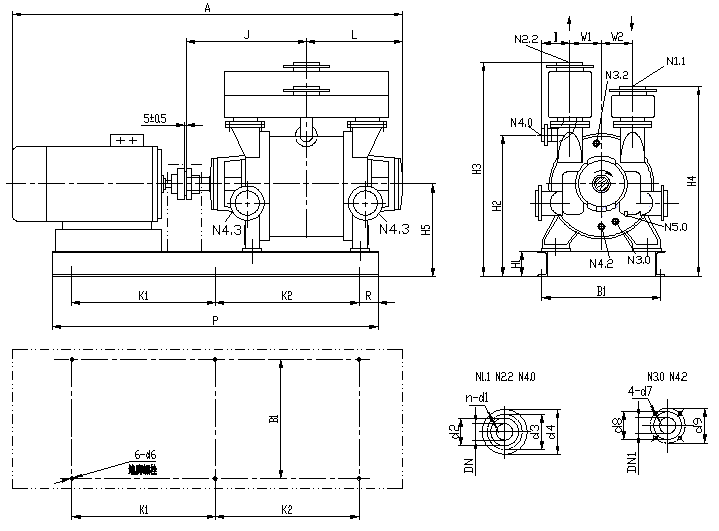

2BE1 303/305/306/353/355/356直联传动安装尺寸
N1.1连通管法兰 N2.2分离器法兰 N3.0工作液接口
N3.2填料函密封液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口 N5.0自动溢流阀
|
代号
|
A
|
B1
|
DN1
|
d6
|
d7
|
d8
|
d9
|
H2
|
H3
|
H4
|
H5
|
I
|
J
|
K1
|
K2
|
|
|
2BE1 303
|
2855
|
870
|
25
|
27
|
M12
|
68
|
85
|
1025
|
1560
|
1385
|
675
|
205
|
875
|
1050
|
1050
|
|
|
2BE1 305/306
|
3208
|
870
|
25
|
27
|
M12
|
68
|
85
|
1025
|
1560
|
1385
|
675
|
205
|
930
|
1225
|
1225
|
|
|
2BE1 353
|
3265
|
990
|
32
|
27
|
M12
|
78
|
100
|
1240
|
1880
|
1680
|
870
|
245
|
955
|
1185
|
1185
|
|
|
2BE1 355/356
|
3580
|
990
|
32
|
27
|
M12
|
78
|
100
|
1240
|
1880
|
1680
|
870
|
245
|
1025
|
1270
|
1270
|
|
|
代号
|
L
|
P
|
R
|
W1
|
W2
|
N3.2
|
N4.3
|
|
|
|
|
|
|
|
|
|
|
2BE1 303
|
705
|
2380
|
140
|
230
|
230
|
G1/2"
|
G1/2"
|
|
|
|
|
|
|
|
|
|
|
2BE1 305/306
|
760
|
2750
|
150
|
230
|
230
|
G1/2"
|
G1/2"
|
|
|
|
|
|
|
|
|
|
|
2BE1 353
|
790
|
2670
|
150
|
285
|
285
|
G1/2"
|
G1/2"
|
|
|
|
|
|
|
|
|
|
|
2BE1 355/356
|
860
|
2840
|
150
|
285
|
285
|
G1/2"
|
G1/2"
|
|
|
|
|
|
|
|
|
|
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
|||
|
2BE1 303
2BE1 305 2BE1 306 |
N1.1
N2.2 |
200
|
22
|
268
|
295
|
340
|
8
|
2BE1 353
2BE1 355 2BE1 356 |
N1.1
N2.2 |
250
|
22
|
320
|
350
|
395
|
12
|
|
|
N4.0
|
100
|
18
|
158
|
180
|
220
|
8
|
N4.0
|
125
|
18
|
188
|
210
|
250
|
8
|
|||
